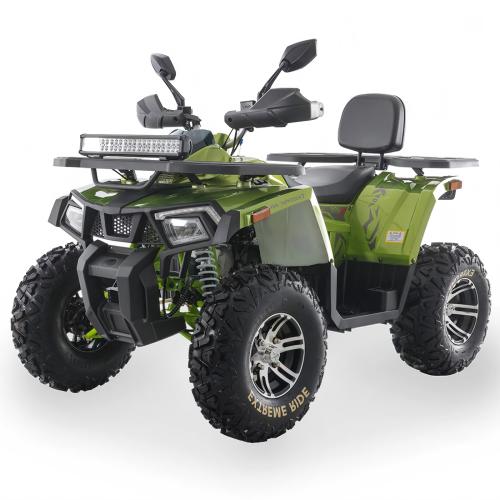

PHYES-ATV029

Engine Type: 170cc, Air cooled, 4-stroke, 1-cylinder
Bore×Stroke: φ62.5×57.8mm
Compression Ratio:   10:01
Carburetor:   PD26
Ignition: CDI
Starting: Electrical start
Transmission: F-N-R
Drive Train: Chain drive
Max. Power: 8.0w/7500r/min
Max. Torque: 10.2N.m/6000r/min
Suspension/Front: Independent double shock absorber
Suspension/Rear: Single shock absorber
Brakes/Front: DISK
Brakes/Rear: Ventilated Hydraulic disc
Tires/Front: 23×7-10
Tires/Rear: 22×10-10
Overall Size (L*W*H)   1870*1120*1110mm
Seat Height: 790mm
Wheelbase: 1240mm
Ground Clearance: 130mm
Battery: 12V9Ah
Fuel Capacity: 5L
Dry Weight: 181kg
Max. Load: 150kg
Package Size: 1690×1100×790mm
Max. Speed: 62km/h
Fuel Consumption: 3.8L/100km
Starting Time: ≤15s
