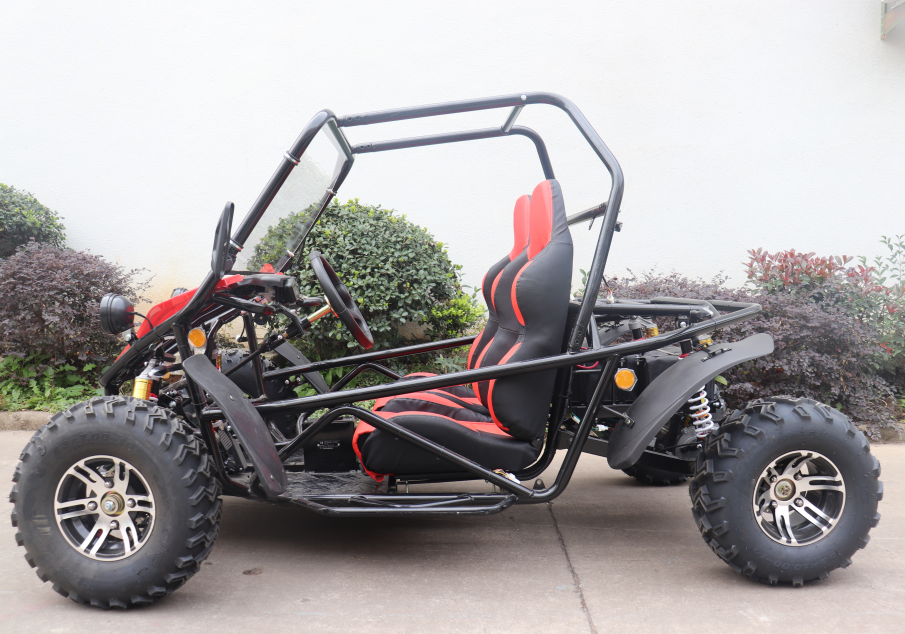

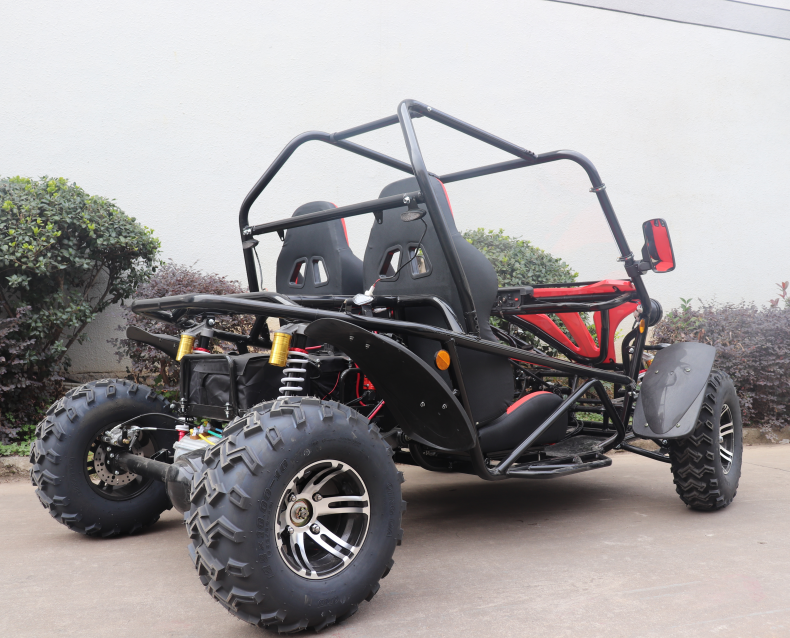

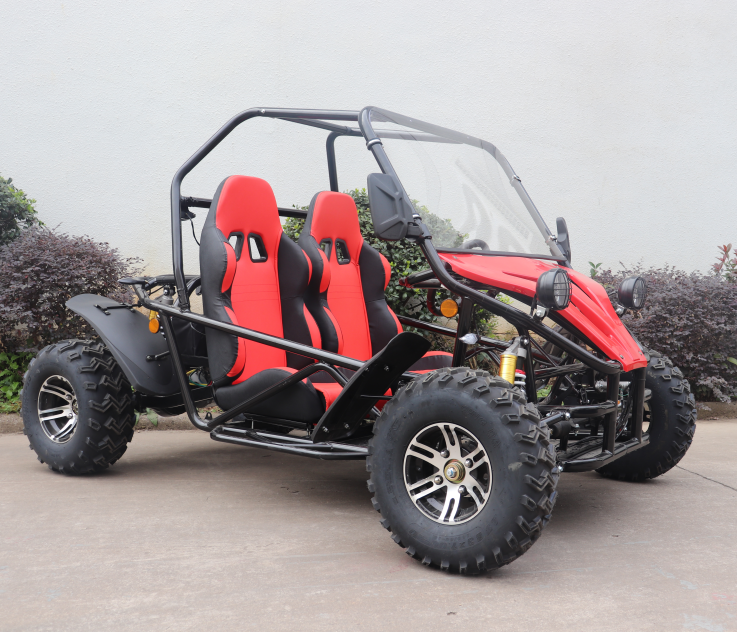

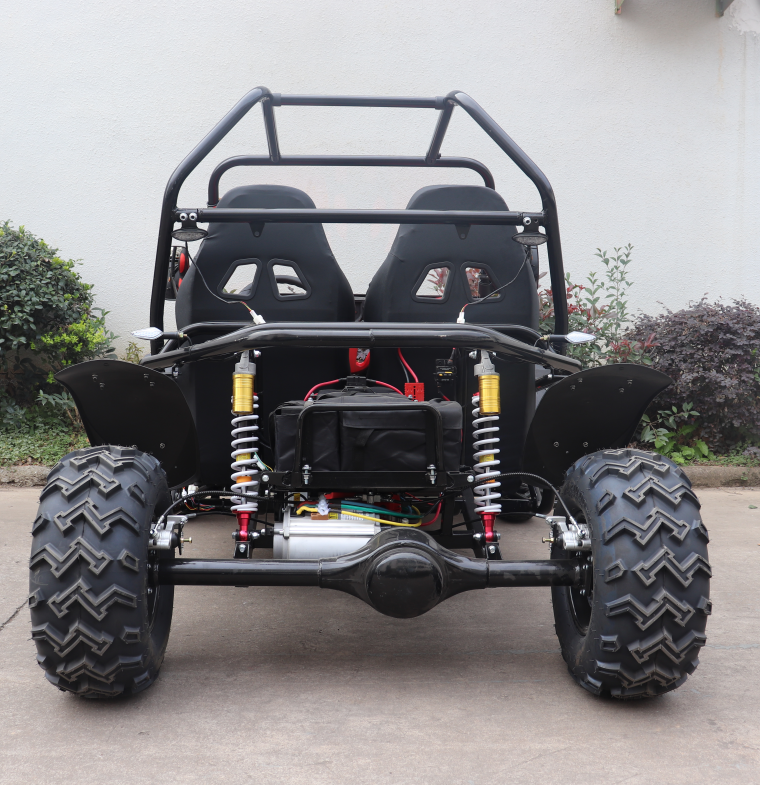

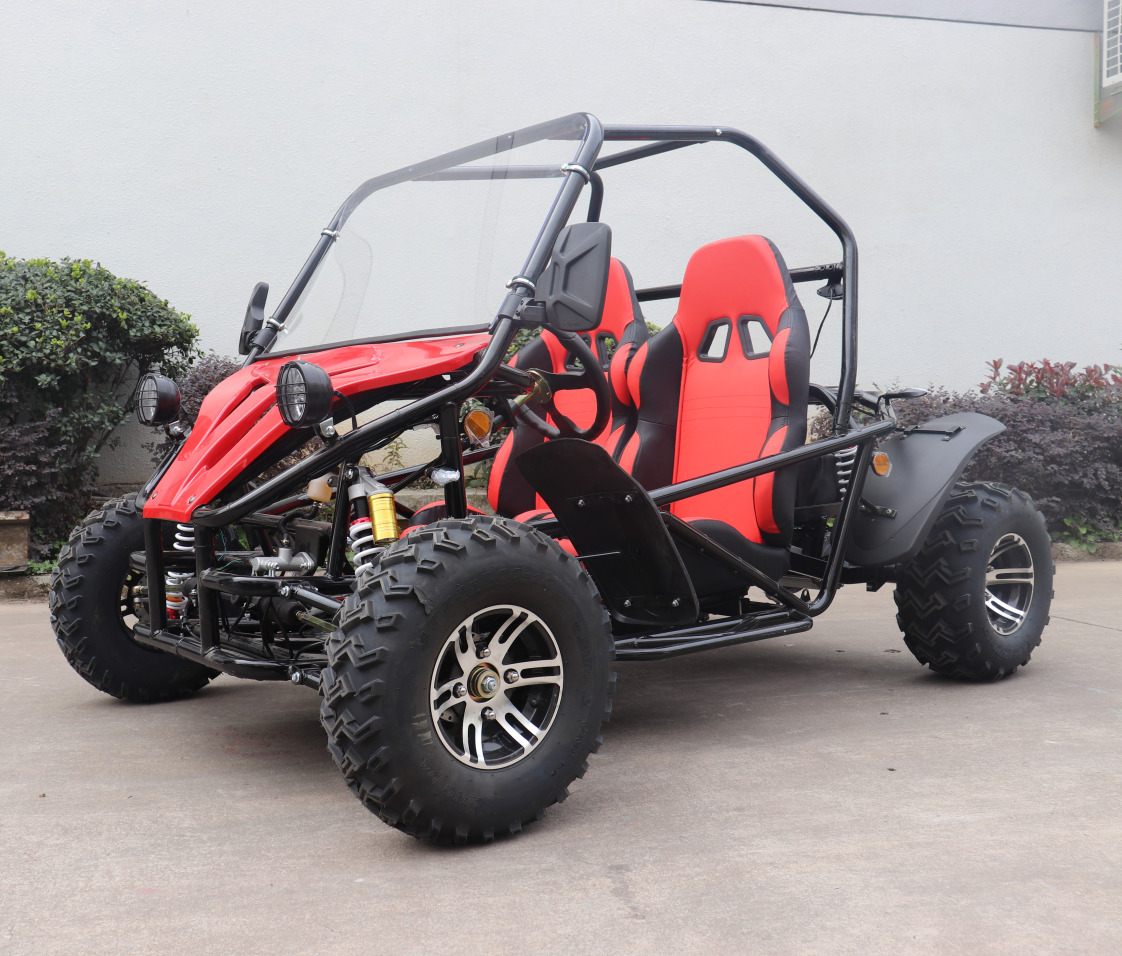

TWO SEAT ELECTRIC GO KART FOR ADULT

规格 60V ELECTRIC BUGGY
颜色 RED
型号 PHYES-EGK03
CONTACT ONLINE
Detail



BATTERY60V 50Ah
MOTOR60V 5000W AC
RATED POWER(W)5000W±10%
CONTROLLER60V 5000W
CHARGINGAC80-240V   50-60Hz   60V MAX7A
CHARGING TIME(H)8-10
BRAKEDOUBLE FRONT HYDRAULIC DISC BRAKE;REAR DRUM BRAKE
MAX SPEED(Km/h)55
MAX LOAD(Kg)250
MAX CLIMBING(°)≦40
MAX STROKE(Km)50
GROUND CLEARANCE(mm)210
FRONT REAR WHEEL BASE(mm)1900
TIRE SIZEFRONT 23x7.00-10 REAR 22x10-10   AL HUB
N.W/G.W(kg)313/380
PRODUCT SIZE(mm)2450×1610×1580
PACKING SIZE(mm)2270×1480×860
TRANSMISSIONSHAFT DRIVE
QTY8Pcs/20'FT,16Pcs/40'GP,24Pcs/40'HQ
PACKING(mm)IRON(2250*1460*840)+CARTON(5LAYER)
